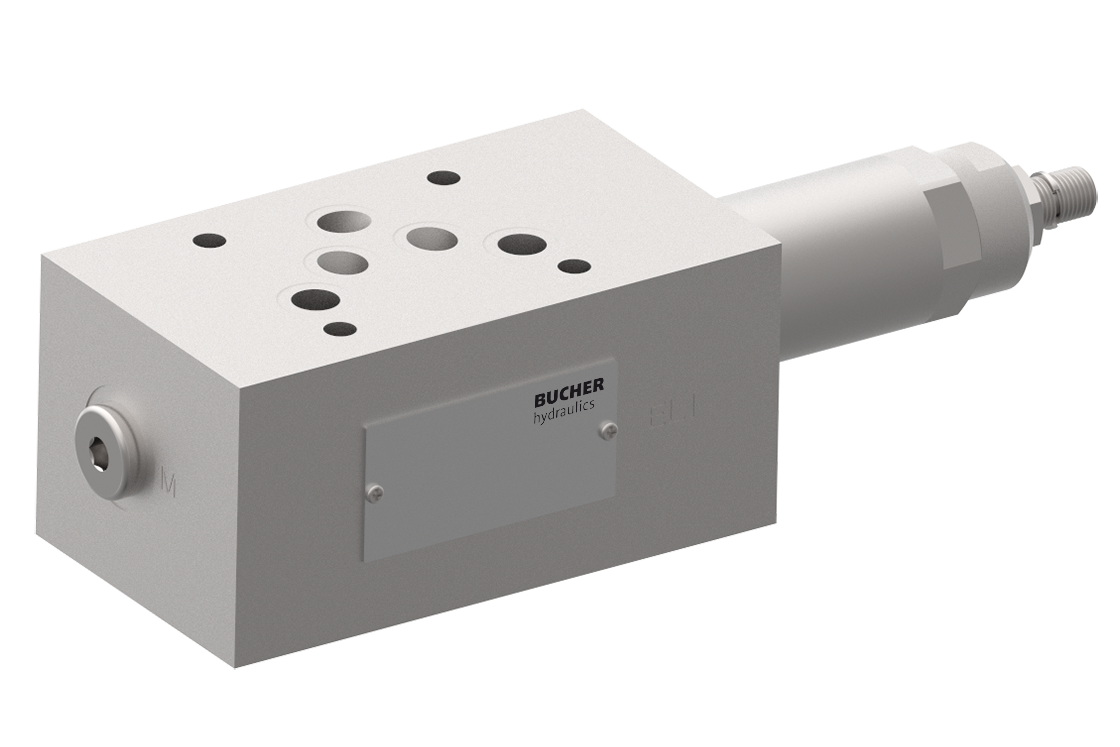

2-way Pressure Reducing Valves

2-way Pressure Reducing Valves
Symbol Type Q max.
l/min		 P max.
bar		 Operation Interface Data sheet Data sheet
SDRB-P… 80 315 hand adjustment ISO 4401-03-02 / DIN 24 340 SDR-6_400-P-303501-en
SDRB-P… 100 315 hand adjustment ISO 4401-05-04 / DIN 24 340 SDR-10_400-P-306501-en
SWDRVPD-5-P… 80 350 solenoid ISO 4401-03-02 / DIN 24 340 SWDRVP-6_400-P-304501-en
SWDRVPD-5-P… 140 350 solenoid ISO 4401-05-04 / DIN 24 340 SWDRVP-10_400-P-307501-en
SDRA-P… 250 350 hand adjustment ISO 4401-07-07 / DIN 24 340 SDR-16_400-P-308501-en
SWDRVPB-5-P… 250 350 solenoid ISO 4401-07-07 / DIN 24 340 SWDRVP-5-16_400-P-309501-en
SDRPSB-5…-P… 60 315 prop. solenoid ISO 4401-03-02 / DIN 24 340 SDRPS-5-6_400-P-593451-en
SDRPSA-5…-P… 120 315 prop. solenoid ISO 4401-05-04 / DIN 24 340 SDRPS-5-10_400-P-593501-en
SDRPSA-5…-P… 250 350 prop. solenoid ISO 4401-07-07 / DIN 24 340 SDRPS-5-16_400-P-593551-en
SDRB-AR… 80 315 hand adjustment ISO 4401-03-02 / DIN 24 340 SDR-6_400-P-303501-en
SDRB-AR… 100 315 hand adjustment ISO 4401-05-04 / DIN 24 340 SDR-10_400-P-306501-en
SWDRVPD-5-AZR 80 350 solenoid ISO 4401-03-02 / DIN 24 340 SWDRVP-6_400-P-304501-en
SWDRVPD-5-AZR 140 350 solenoid ISO 4401-05-04 / DIN 24 340 SWDRVP-10_400-P-307501-en
SDRA-PA… 250 350 hand adjustment ISO 4401-07-07 / DIN 24 340 SDR-16_400-P-308501-en
SDRB-BR… 80 315 hand adjustment ISO 4401-03-02 / DIN 24 340 SDR-6_400-P-303501-en
SDRB-BR… 100 315 hand adjustment ISO 4401-05-04 / DIN 24 340 SDR-10_400-P-306501-en
SWDRVPD-5-BZR 80 350 solenoid ISO 4401-03-02 / DIN 24 340 SWDRVP-6_400-P-304501-en
SWDRVPD-5-BZR 140 350 solenoid ISO 4401-05-04 / DIN 24 340 SWDRVP-10_400-P-307501-en
SDRA-PB… 250 350 hand adjustment ISO 4401-07-07 / DIN 24 340 SDR-16_400-P-308501-en
