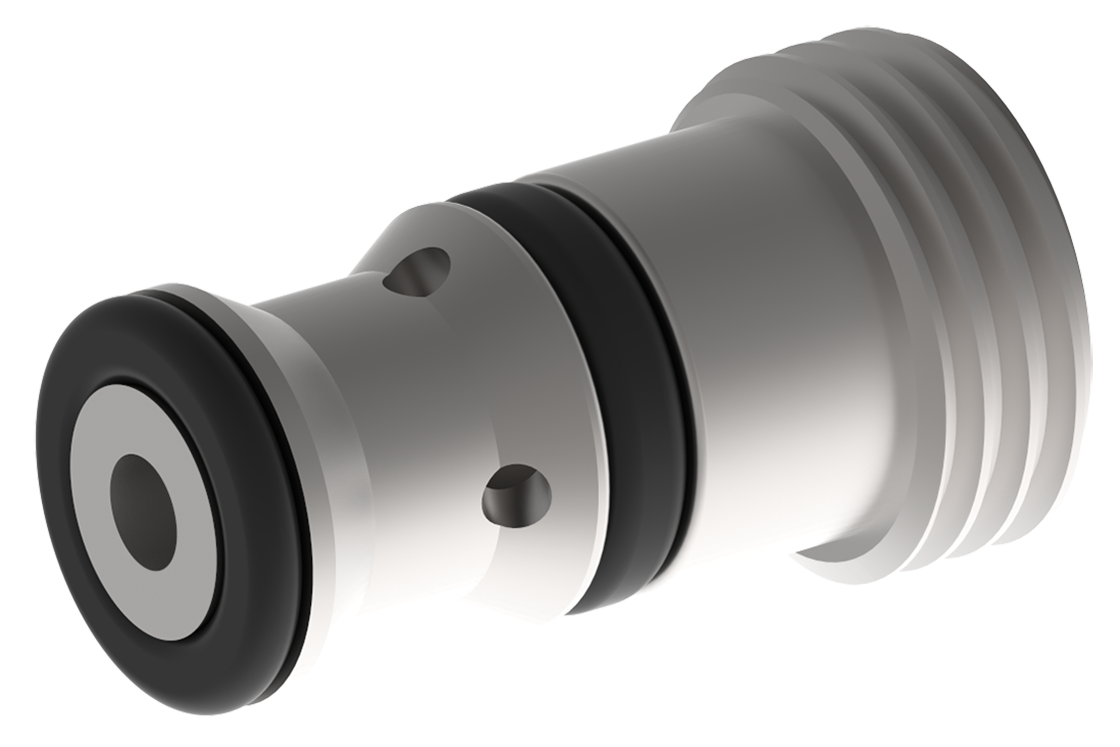

Shuttle Valves, Size 2

Ball-type, screw-in design
Series RWA…

The valve shuts off whichever one of the two inlet ports A1 and A2 is at the lower pressure. Port A is therefore connected with whichever one is at the higher pressure.

Shuttle Valves, Size 2
  • High pressure rating
  • Virtually zero leakage
  • Compact construction
Type Nominal sizes
 Flow rate, max.
l/min		 Operating pressure up to
bar		 Cavity type Thread
RWA… 2 8 250 NG2,5 AE G 1/8"
  Type File extension Size
RW-2_400-P-470101-en Catalog / Data sheet PDF 377.9 KB
RW-2_400-P-470101-us Catalog / Data sheet PDF 377.8 KB

  • Agricultural machinery
  • Construction machines
  • General mechanical engineering
  • Plant engineering
