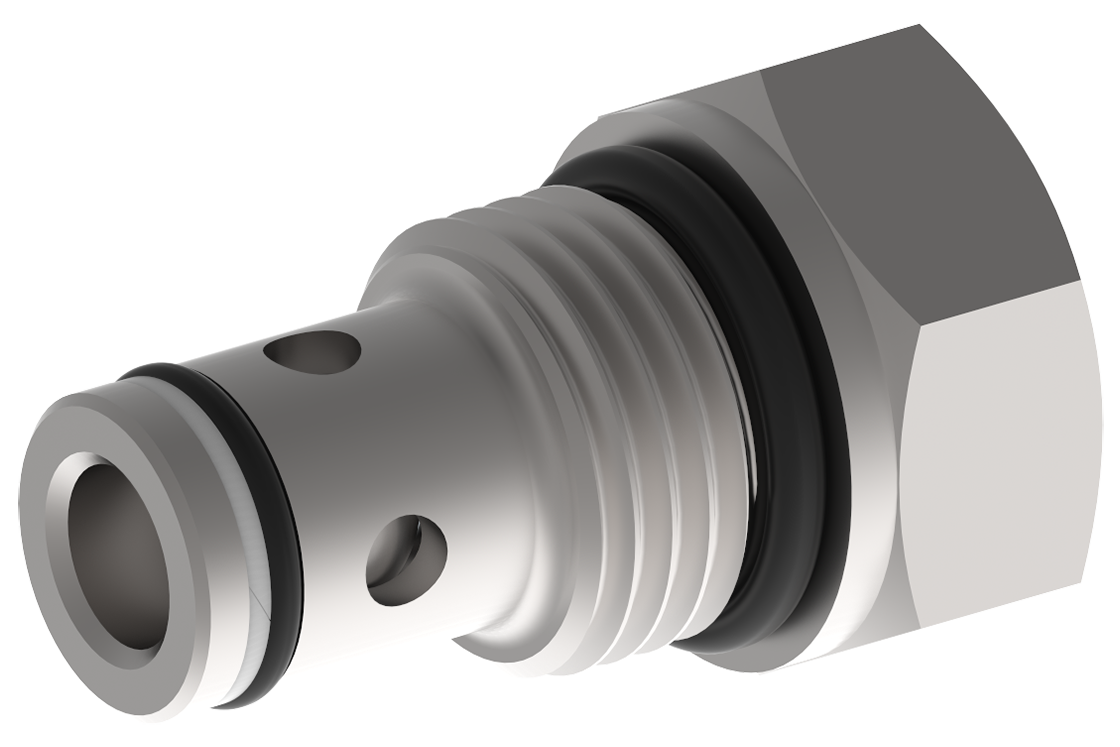

Screw-in Cartridge Valves

Screw-in Cartridge Valves
Symbol Type Q max.
l/min		 P max.
bar		 Opening pressures
bar		 Data sheet
RVPA 120 350 0.6 / 1.0 / 1.6 / 2.5 / 4.0 / 6.3 RVP-10_400-P-455101-en
RVP-16 160 500 0.3 / 1.0 / 15.0 / 20.0 RVP-16_300-P-9050063-en
RVP-22 250 500 0.3 / 1.0 / 15.0 / 20.0 RVP-22_300-P-9050091-en
CVPF-08 37 350 0.35 / 1.0 / 2.0 / 4.0 / 8.0 CVPF-08_520-P-010410-en
CVFP-10 68 350 0.35 / 1.0 / 2.0 / 4.0 / 8.0 CVFP-10_520-P-010120-en
CVFP-12 135 350 0.35 / 1.0 / 2.0 / 4.0 / 8.0 CVFP-12_520-P-010130-en
CVFP-16 225 350 0.35 / 1.0 / 2.0 / 4.0 / 8.0 CVFP-16_520-P-010140-en
CVRP-08 37 350 0.35 / 1.0 / 2.0 / 4.0 / 8.0 CVRP-08_520-P-010210-en
CVRP-10 68 350 0.35 / 1.0 / 2.0 / 4.0 / 8.0 CVRP-10_520-P-010220-en
CVRP-12 135 350 0.35 / 1.0 / 2.0 / 4.0 / 8.0 CVRP-12_520-P-010230-en
CVRP-16 185 350 0.35 / 1.0 / 2.0 / 4.0 / 8.0 CVRP-16_520-P-010240-en
CVFB-04 9.4 350 0.35 / 1.5 CVFB-04_520-P-010300-en
CVFB-08 37 350 0.35 / 0.7 / 1.8 / 3.5 CVFB-08_520-P-010310-en
CVFB-10 68 350 0.35 / 1.0 / 2.0 / 4.0 / 8.0 CVFB-10_520-P-010320-en
