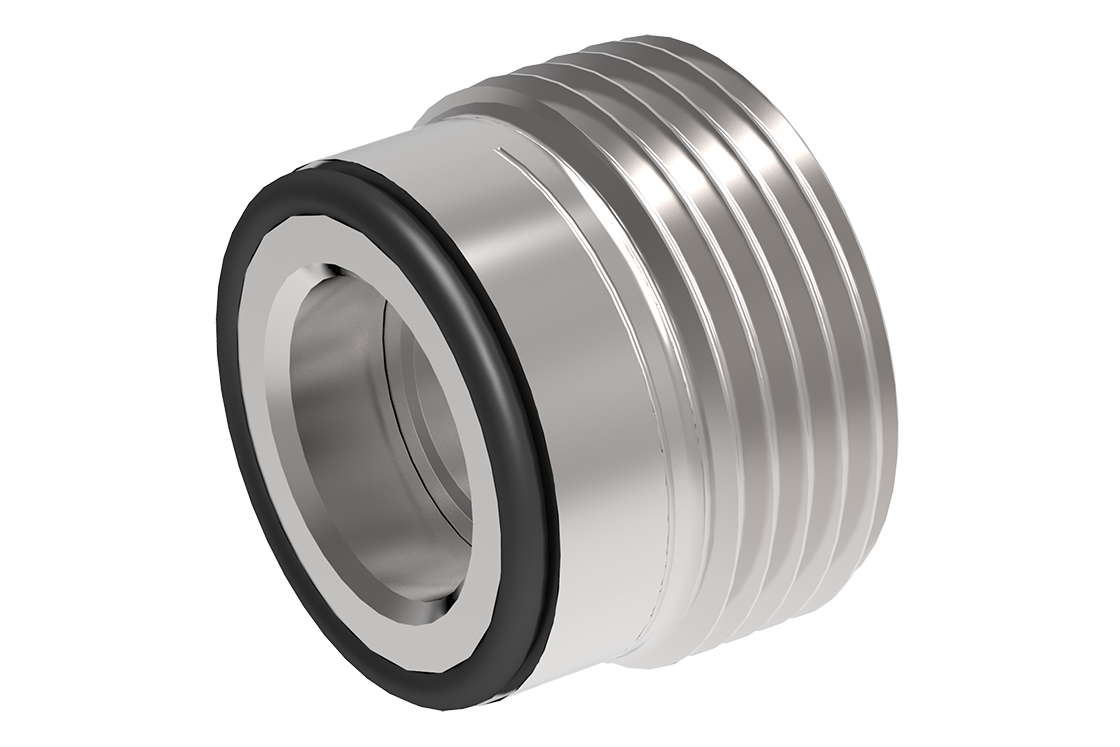

Check Valves, Size 04 … 25 RVE

Plate-type, screw-in design, series RVE

Check valves prevent any flow in one direction. In the opposite direction, free flow with minimal pressure drop is possible.

Check Valves, Size 04 … 25 RVE
  • High pressure rating
  • Virtually zero leakage
  • Compact construction
  • Various opening pressures
  • Optional orifice-bleed in check direction
Type Nominal sizes
 Opening pressures
bar		 Flow rate, max.
l/min		 Operating pressure, max.
bar
RVE-04 04 0.2…0.3 / 1.0 / 2.0 15 350
RVE-06 06 0.2…0.3 / 1.0 / 2.0 35 350
RVE-08 08 0.2…0.3 / 1.0 / 2.0 60 350
RVE-10 10 0.2…0.3 / 1.0 / 2.0 90 350
RVE-16 16 0.2…0.3 / 1.0 / 2.0 170 350
RVE-25 25 0.2…0.3 / 1.0 / 2.0 300 350
  Type File extension Size
RVE-G-04_170-P-050001-en Catalog / Data sheet PDF 465.3 KB
RVE-G-06_170-P-050002-en Catalog / Data sheet PDF 435.3 KB
RVE-G-08_170-P-050003-en Catalog / Data sheet PDF 435.6 KB
RVE-G-10_170-P-050004-en Catalog / Data sheet PDF 435.5 KB
RVE-G-16_170-P-050005-en Catalog / Data sheet PDF 436.5 KB
RVE-G-25_170-P-050006-en Catalog / Data sheet PDF 426.1 KB
Einbaurichtlinien_170-P-059000-en Catalog / Data sheet PDF 51.9 KB
Montageschluessel RV_170-P-051600-en Catalog / Data sheet PDF 177.9 KB

Standard

Optional (metered flow in the no-flow direction)

  • Agricultural machinery
  • Construction machines
  • General mechanical engineering
  • Plant engineering
