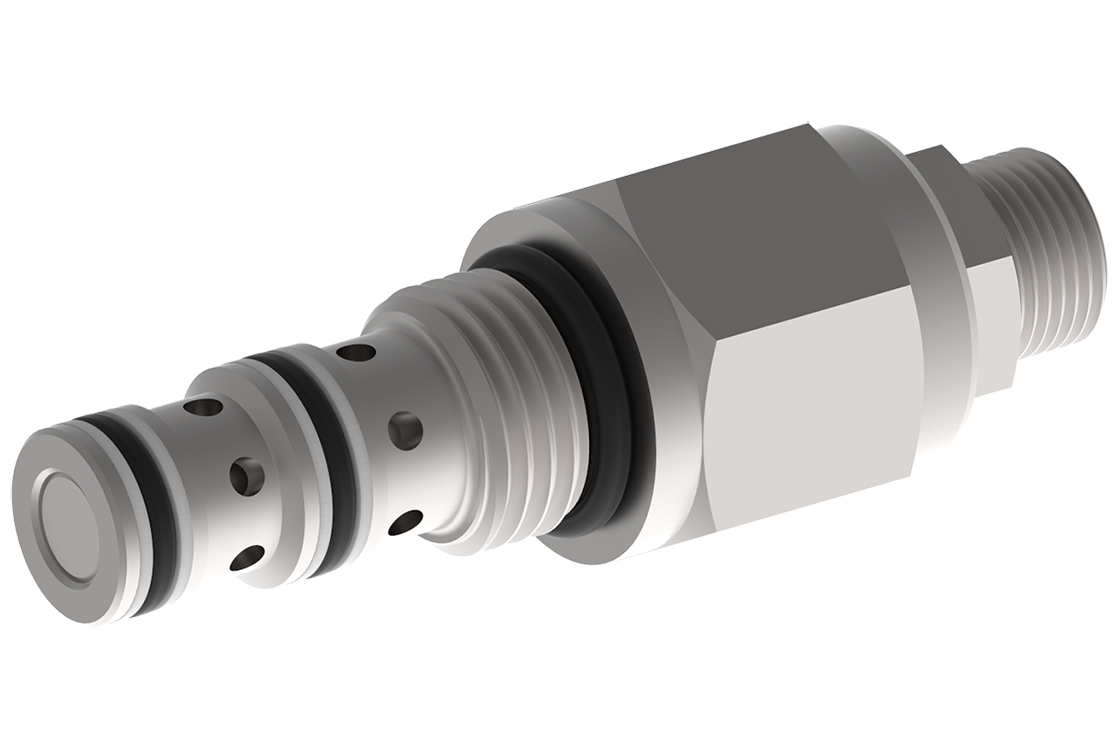

Throttle Valves (Screw-in Cartridge Valves)

Throttle Valves (Screw-in Cartridge Valves)
Symbol Type Q max.
l/min		 P max.
bar		 Operation Cavity type Thread Data sheet Data sheet
MDPWA… 50 350 hand adjustment AW M20 x 1,5 MDP-5_400-P-405071-en
MDPAA… 140 350 hand adjustment CA M18 x 1,5 MDP-10_400-P-405101-en
MDPCA… 140 350 hand adjustment DC M24 x 1,5 MDP-10_400-P-405101-en
MDRPA-… 45 250 prop. solenoid DD M24 x 1,5 MDRP-G-10_400-P-610101-en
MDR32GN… 30 250 prop. solenoid AM 3/4-16 UNF MDR32G-5_400-P-618101-en
MDT32…-5M…B… 40 250 prop. solenoid AM 3/4-16 UNF MDT32G-5M_400-P-618121-en
MDR42A… 30 250 prop. solenoid AN 3/4-16 UNF MDR42AD-5_400-P-618201-en

 MDT42A... 55 250 prop. solenoid AN 3/4-16 UNF MDT42A-5_400-P-618221-en
MVRPSB… 50 250 prop. solenoid AL 3/4-16 UNF MVRPSB-G-5_400-P-605101-en
MVRPSB… 140 250 prop. solenoid DH M27 x 2 MVRPSB-G-10_400-P-615101-en
MVRPSB… 250 250 prop. solenoid ER M33 x 2 MVRPSB-G-16_400-P-616101-en
MDHP43… 150 420 hydraulic DZ M36 x 2 MDHP43-10_400-P-630101-en
PODS-20 230 210 hydraulic C2040 1-5/8-12 UN PODS-20_520-P-071650-en
