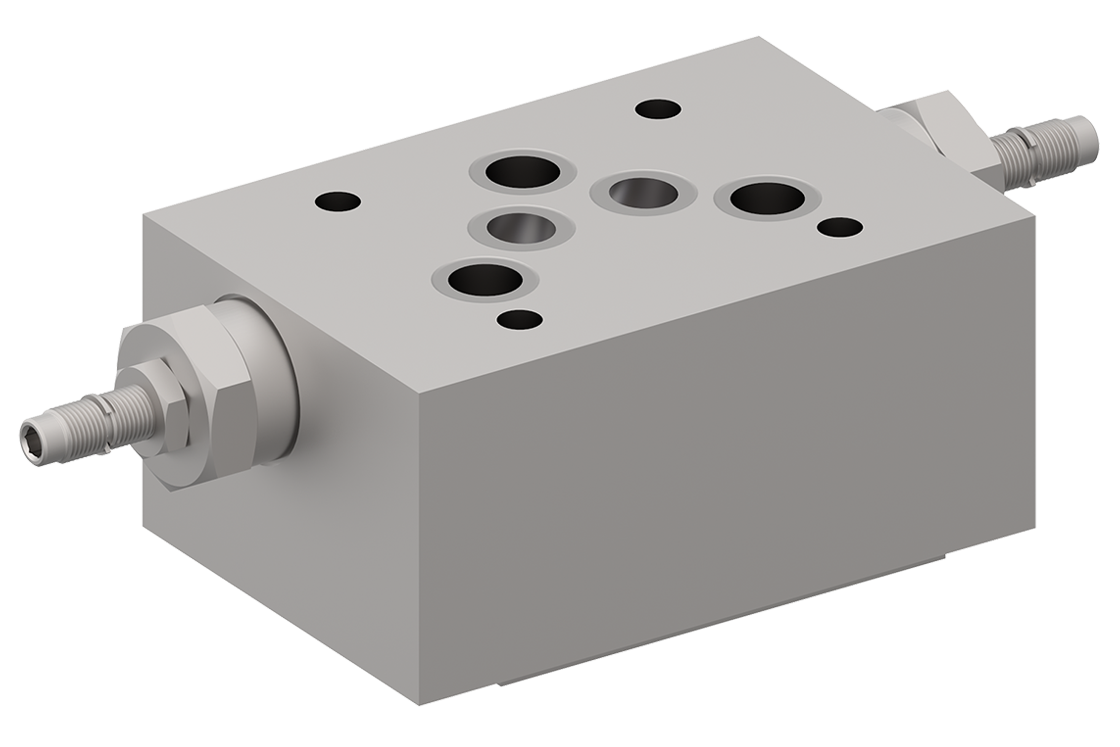

Throttle Check Valves (Stack Valves)

Throttle Check Valves (Stack Valves)
Symbol Type Q max.
l/min		 P max.
bar		 Operation Interface Data sheet Data sheet
SRDA-P… 25 250 hand adjustment ISO 4401-02-01 SRD-4_400-P-425101-en
SRDA-AA… 25 250 hand adjustment ISO 4401-02-01 SRD-4_400-P-425101-en
SMDR-AA… 80 350 hand adjustment ISO 4401-03-02 / DIN 24 340 SMDR-6_400-P-430101-en SMDR-6_400-P-430101-us
SMDR-AA… 160 350 hand adjustment ISO 4401-05-04 / DIN 24 340 SMDR-10_400-P-431101-en SMDR-10_400-P-431101-us
SRDB-AA… 260 350 hand adjustment ISO 4401-07-07 / DIN 24 340 SRD-16_400-P-436101-en
SRDA-AZ… 25 250 hand adjustment ISO 4401-02-01 SRD-4_400-P-425101-en
SMDR-AZ… 80 350 hand adjustment ISO 4401-03-02 / DIN 24 340 SMDR-6_400-P-430101-en SMDR-6_400-P-430101-us
SMDR-AZ… 160 350 hand adjustment ISO 4401-05-04 / DIN 24 340 SMDR-10_400-P-431101-en SMDR-10_400-P-431101-us
SRDB-AZ… 260 350 hand adjustment ISO 4401-07-07 / DIN 24 340 SRD-16_400-P-436101-en
SRDA-BA… 25 250 hand adjustment ISO 4401-02-01 SRD-4_400-P-425101-en
SMDR-BA… 80 350 hand adjustment ISO 4401-03-02 / DIN 24 340 SMDR-6_400-P-430101-en SMDR-6_400-P-430101-us
SMDR-BA… 160 350 hand adjustment ISO 4401-05-04 / DIN 24 340 SMDR-10_400-P-431101-en SMDR-10_400-P-431101-us
SRDB-BA… 260 350 hand adjustment ISO 4401-07-07 / DIN 24 340 SRD-16_400-P-436101-en
SMDR-BZ… 80 350 hand adjustment ISO 4401-03-02 / DIN 24 340 SMDR-6_400-P-430101-en SMDR-6_400-P-430101-us
SMDR-BZ… 160 350 hand adjustment ISO 4401-05-04 / DIN 24 340 SMDR-10_400-P-431101-en SMDR-10_400-P-431101-us
SRDA-BZ… 25 250 hand adjustment ISO 4401-03-02 / DIN 24 340 SRD-4_400-P-425101-en
SRDB-BZ… 260 350 hand adjustment ISO 4401-07-07 / DIN 24 340 SRD-16_400-P-436101-en
SRDA-ABA… 25 250 hand adjustment ISO 4401-02-01 SRD-4_400-P-425101-en
SMDR-ABA… 80 350 hand adjustment ISO 4401-03-02 / DIN 24 340 SMDR-6_400-P-430101-en SMDR-6_400-P-430101-us
SMDR-ABA… 160 350 hand adjustment ISO 4401-05-04 / DIN 24 340 SMDR-10_400-P-431101-en SMDR-10_400-P-431101-us
SRDB-ABA… 260 350 hand adjustment ISO 4401-07-07 / DIN 24 340 SRD-16_400-P-436101-en
SRDA-AA… 25 250 hand adjustment ISO 4401-02-01 SRD-4_400-P-425101-en
SMDR-ABZ… 80 350 hand adjustment ISO 4401-03-02 / DIN 24 340 SMDR-6_400-P-430101-en SMDR-6_400-P-430101-us
SMDR-ABZ… 160 350 hand adjustment ISO 4401-05-04 / DIN 24 340 SMDR-10_400-P-431101-en SMDR-10_400-P-431101-us
SRDB-ABZ… 260 350 hand adjustment ISO 4401-07-07 / DIN 24 340 SRD-16_400-P-436101-en
