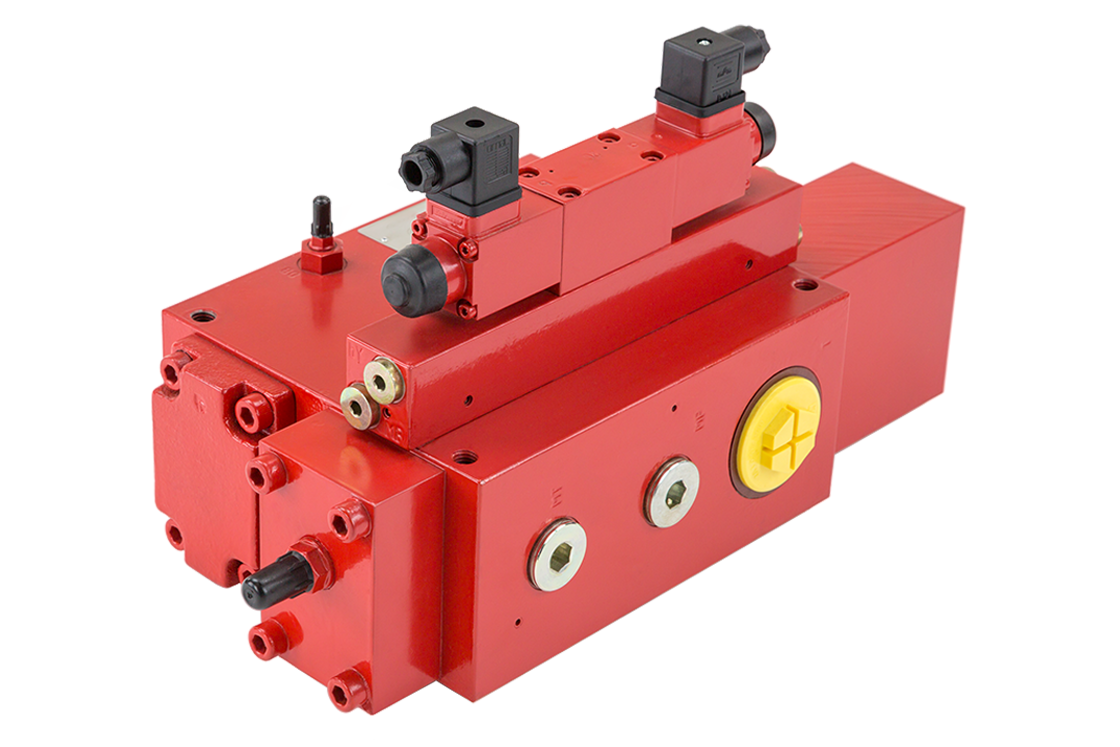

Directional Valve Series CV

This range of proportional valves is used to provide load-independent speed control of motors and cylinders.

CV (Compac) means: all valves functions are integrated into one compact block.

Directional Valve Series CV
  • Monoblock, manifold-mounting valve with 2-way hydrostat (individual compensator)
  • Adaptable building-block system
  • Individual matching of flow rates
  • Primary pressure relief for each actuator
Type Nominal size
 Nominal flow rate
l/min		 Operating pressure, max.
bar		 Max. tank pressure
bar		 Viscosity range
mm²/s		 Fluid temperature
°C		 Voltage
V DC
CV12... 12 100 350 50 15...380 -20...+80 12 / 24
CV18... 18 200 350 50 15...380 -20...+80 12 / 24
CV25... 25 450 350 50 15...380 -20...+80 12 / 24
  Type File extension Size
CV_301-P-9050025-en Catalog / Data sheet PDF 890.3 KB

Type of operator

  • Electrical
  • Hydraulic
  • Combined electrical / hydraulic
  • Manual
  • Combined electrical / manual
  • Combined hydraulic / manual
  • Construction machines
  • Municipal equipment
  • Mining
  • Military
  • Offshore
