Directional Valve Series HDS

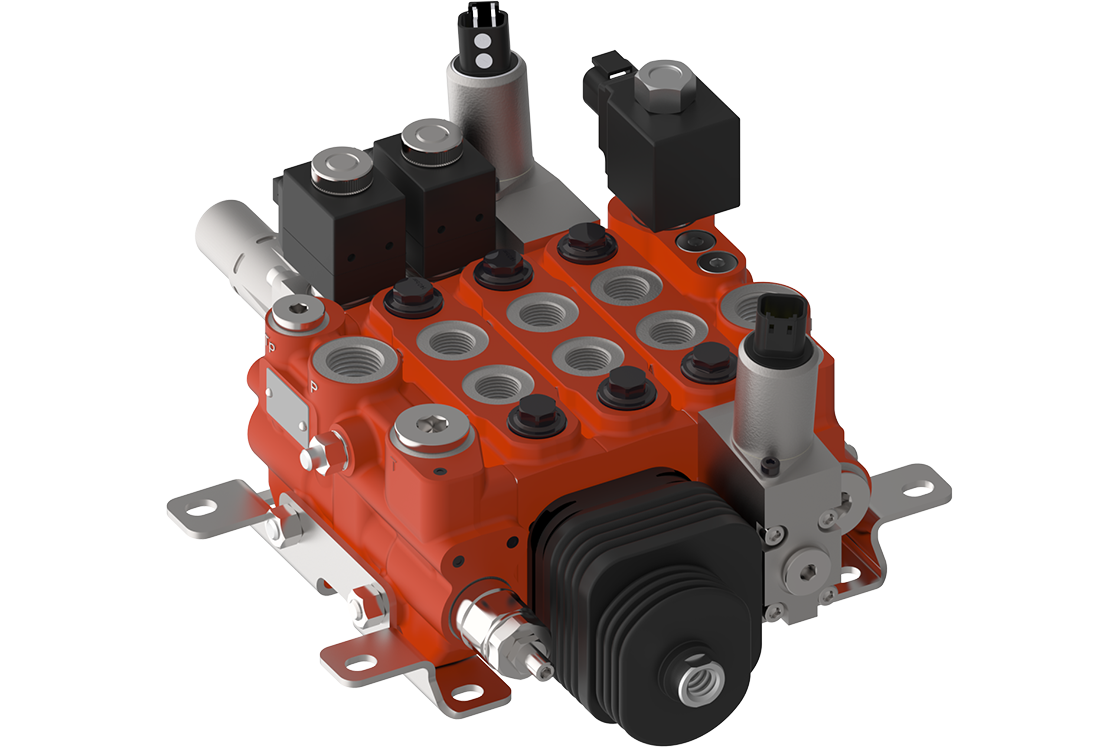

Series HDS directional control valves represents a flexible unit construction, the elements of which may be combined into one valve unit as required.

They are available in 9 different sizes, and with parallel, serial, serial/parallel,  Load Sensing and Flow Sharing circuitry. In addition, the range includes inlet and intermediate flow control sections with either manual or electro-proportional operators. Where accurate control of speed and actuator position is needed, the valves satisfy the most complex hydraulic circuit requirements.

Directional Valve Series HDS
  • Wide choice of hydraulic circuitry and maximum flexibility
  • Electrical and mechanical operators can be combined in the same valve
  • Spools can be customised with differing metering ranges
  • By-pass solenoid valve and manual safety control in order to prevent unauthorised movement of actuators
  • Wide range of valve sections with flow control and priority flow control
Type Number of sections Nominal flow rate
l/min		 Max. inlet pressure (P)
bar		 Max. work port press. (A/B)
bar
HDS14 1 - 12 70 280 320
HDS24 1 - 10 130 280 320
HDS34 1 - 10 180 300 350
  • Fluid temperature: from -20 to +80 °C
  • Viscosity operating range: 15 - 75 mm²/s (cSt)
  • Max contamination level: 21/19/16 - ISO 4406:1999 (NAS 1638 class 10)
  • Max contamination level for electro-hydraulic applications: 20/18/15 - ISO 4406:1999 (NAS 1638 class 9)
  Type File extension Size
HDS14_200-FL-991637-en Flyer PDF 5.3 MB
HDS24_200-P-991240-en Catalog / Data sheet PDF 7.4 MB
HDS24_200-FL-991630-en Flyer PDF 2.4 MB
HDS34_200-P-991227-en Catalog / Data sheet PDF 8.6 MB
  • With operation by manual lever, 2-spool combi-lever, flexible cable
  • With spool-activated microswitch
  • With ON-OFF solenoid operation
  • With hydraulic, pneumatic, proportional hydraulic, electro-hydraulic and proportional electro-hydraulic operation
  • With mechanical-release check valves in A/B ports
  • With anti-shock and anti-cavitation relief valves in A/B ports
  • Flow control sections with either manual or electro-proportional adjustment
  • Tractors
  • Agricultural machines
  • Harvesting machines
  • Earth-moving machinery
