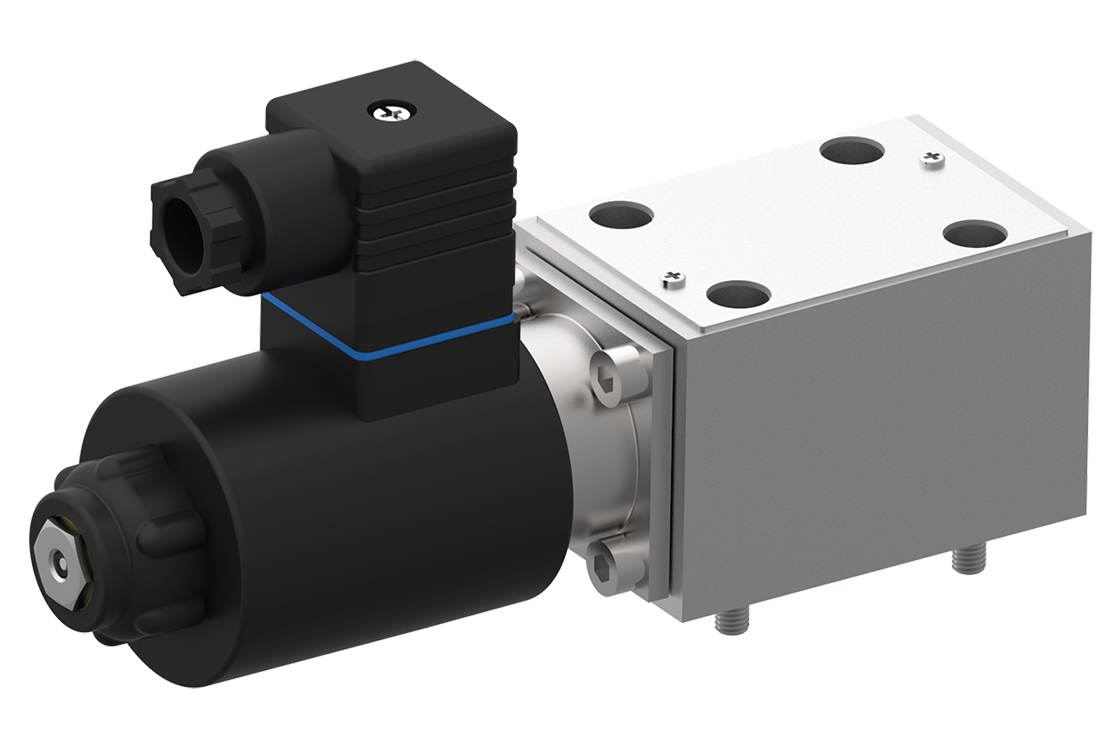

Direct Acting 2/2…4/4 Directional Seat Valves (Manifold Mounting)

Direct Acting 2/2…4/4 Directional Seat Valves (Manifold Mounting)
Symbol Type Q max.
l/min		 P max.
bar		 Operation Interface Data sheet Data sheet
W2N/P 22S/O… 40 315 solenoid ISO 4401-03-02 / DIN 24 340 W2N,P-sol-6_400-P-115110-en
W2N/P 22S/O… 20 315 hand adjustment ISO 4401-03-02 / DIN 24 340 W2N,P-hand-6_400-P-115310-en
W2N/P 22S/O… 20 315 pneumatic ISO 4401-03-02 / DIN 24 340 W2N,P-pneu-6_400-P-115410-en
EEx-W2N22S/O… 20 315 solenoid EEx ISO 4401-03-02 / DIN 24 340 EExW2_400-P-115210-en
W2N/P 32S/O… 40 315 solenoid ISO 4401-03-02 / DIN 24 340 W2N,P-sol-6_400-P-115110-en
W2N/P 32S/O… 20 315 hand adjustment ISO 4401-03-02 / DIN 24 340 W2N,P-hand-6_400-P-115310-en
W2N/P 32S/O… 20 315 pneumatic ISO 4401-03-02 / DIN 24 340 W2N,P-pneu-6_400-P-115410-en
EEx-W2N32S/O… 20 315 solenoid EEx ISO 4401-03-02 / DIN 24 340 EExW2_400-P-115210-en
W2N/P 33R… 40 315 solenoid ISO 4401-03-02 / DIN 24 340 W2N,P-sol-6_400-P-115110-en
W2N/P 33R… 20 315 hand adjustment ISO 4401-03-02 / DIN 24 340 W2N,P-hand-6_400-P-115310-en
W2N/P 33R… 20 315 pneumatic ISO 4401-03-02 / DIN 24 340 W2N,P-pneu-6_400-P-115410-en
EEx-W2N33R… 20 315 solenoid EEx ISO 4401-03-02 / DIN 24 340 EExW2_400-P-115210-en
W2N/P 43F/G… 40 315 solenoid ISO 4401-03-02 / DIN 24 340 W2N,P-sol-6_400-P-115110-en
W2N/P 43F/G… 20 315 hand adjustment ISO 4401-03-02 / DIN 24 340 W2N,P-hand-6_400-P-115310-en
W2N/P 43F/G… 20 315 pneumatic ISO 4401-03-02 / DIN 24 340 W2N,P-pneu-6_400-P-115410-en
EEx-W2N43F/G… 20 315 solenoid EEx ISO 4401-03-02 / DIN 24 340 EExW2_400-P-115210-en
WESDB-42-AD-6… 30 315 solenoid ISO 4401-03-02 / DIN 24 340 WESD-42-AD-6_400-P-181320-en WESD-42-AD-6_400-P-181320-us
WESDB-43-D-6… 30 315 solenoid ISO 4401-03-02 / DIN 24 340 WESD-43-D-6_400-P-181330-en WESD-43-D-6_400-P-181330-us
W2N/P 44A… 40 315 solenoid ISO 4401-03-02 / DIN 24 340 W2N,P-sol-6_400-P-115110-en
W2N/P 44A… 20 315 hand adjustment ISO 4401-03-02 / DIN 24 340 W2N,P-hand-6_400-P-115310-en
W2N/P 44A… 20 315 pneumatic ISO 4401-03-02 / DIN 24 340 W2N,P-pneu-6_400-P-115410-en
EEx-W2N44A… 20 315 solenoid EEx ISO 4401-03-02 / DIN 24 340 EExW2_400-P-115210-en
