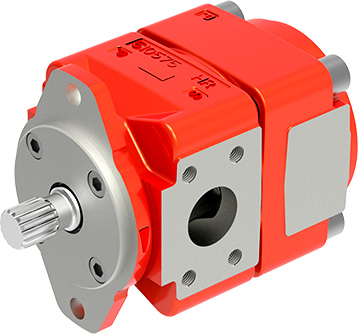

QXEH Internal Gear Pumps

Highly dynamic variable-speed pump operation

The QXEH series has been specially developed for pumping duties in highly dynamic servo drives with a reversing function. Using the pinion-shaft technology, high pressures up to 280 bar are developed in a single stage. QXEH pumps are therefore particularly well suited for a wide range of applications in industrial hydraulics where there are high demands on power density, energy efficiency and machine productivity. At the same time, they ensure maximum operational reliability coupled with minimal flow- and pressure-pulsations even during operation with highly dynamic load cycles.

QXEH Internal Gear Pumps
  • Open circuits up to 280 bar max. working pressure
  • Specially for highly dynamic drives with a reversing function
  • Extremely low noise levels < 75 dB(A)
  • Can be combined to make a double pump
  • Can be used with almost all hydraulic fluids
  • Can be used with fixed- and variable-speed drives
Type Operating pressure (continuous) up to
bar
Operating pressure (intermittend) up to
bar
Displace­ment
cm³/rev
Speed max.
rpm
QXEH32 250 280 10-16 5500
QXEH42 250 280 20-32 4000
QXEH52 250 280 40-63 3200
QXEH62 250 280 80-125 2700
QXEH82 250 280 160-250 1900
  Type File extension Size
QXEH_100-P-000096-en Catalog / Data sheet PDF 1.2 MB
QXEH_100-P-000096-us Catalog / Data sheet PDF 1.2 MB
  • Hydraulic presses
  • Injection moulding machines
  • Machine tools
  • Waste compactors
  • Lift/elevator drives
  • Pressure diecasting machines
  • Plastics-processing machines
  • Hydraulic power units
