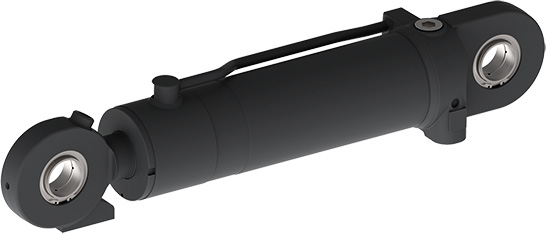

Dozer-blade Cylinders

The dozer blade is an attachment on mobile excavators. The dozer blade is also used as a support to improve the stability of the excavator. Two hydraulic cylinders bring the blade into the support position. Integral check valves provide leak-free shut-off and offer pipe rupture protection. In a similar manner, when the dozer blade is in the raised position a check valve prevents it from sinking.

Dozer-blade Cylinders
  • Very reliable anti-leakage features
  • Consistent, temperature-independent, material-friendly damping
  • Visually appealing and robust construction
  • For use under the harshest conditions
  • Low-temperature service
  • Long bearing life
  • Good cost-effectiveness for the customer
Piston diameter
mm		 Rod diameter
mm		 Stroke length
mm		 Operating pressure
bar		 Port sizes
70…130 50…80 150…400 650 unrestricted

The above details are guideline values taken from previously developed products. If your requirements do not fit into this framework, we will find the best solution for your application.

  • Double-acting cylinder
  • Integral pilot-operated check valve (piston and rod sides) with throttle function
  • With optional version for low-temperature service
  • Rod options: induction hardened and hard-chrome-plated to size or nickel-chrome plated
  • Undercarriages of mobile excavators
