Axle Lock Cylinders

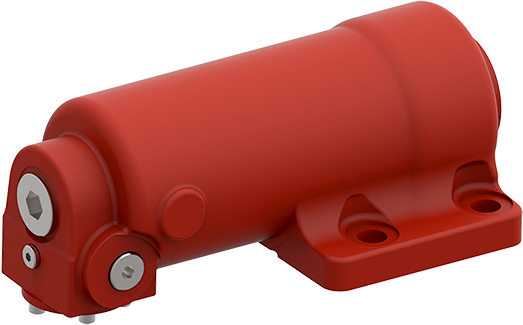

Axle lock cylinders are used for locking the swing axle in mobile construction machines. Our axle lock cylinders feature a strong and stable design with integral lock valves. Thanks to this compact design, complex routing of hydraulic lines is unnecessary. The cylinder can be controlled with just one line.

Very reliable anti-leakage features
Visually appealing and robust construction
For use under the harshest conditions
Low-temperature service
Good cost-effectiveness for the customer
Cylinder can be controlled with just one line
Wide range of variants available, enabling a rapid response to your requirements

Piston diameter mm	Stroke length mm	Operating pressure bar	Port sizes
60…130	180	650	unrestricted

The above details are guideline values taken from previously developed products. If your requirements do not fit into this framework, we will find the best solution for your application.

Plunger cylinder without internal end-stop
Induction hardened piston, chrome-plated to size or nickel-chrome plated
Integral pilot-operated check valve
Model with mounting flange as required

Construction machines
Harvesters
