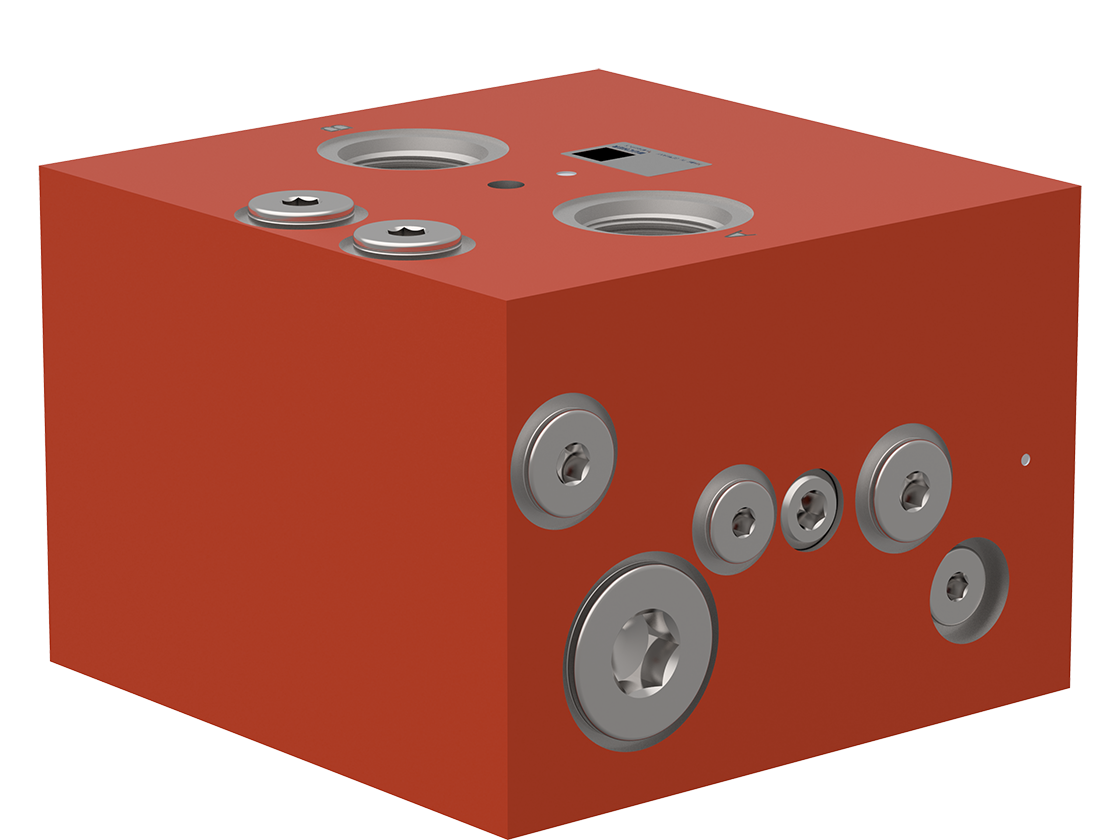

Flow divider MT14 (high performance)

The flow dividers in the MT14 series are a further development of our current solution in terms of energy optimization as well as extended control flow and pressure range. They divide a flow into two equal parts (1:1). When flow passes through a valve in the opposite direction, the two part-flows are combined into one single flow (added).

The dividing and combining functions are largely independent of the pressures of the two divided flows and the fluid viscosity.

Flow divider MT14 (high performance)
  • Extended operating range Qmax 300 l/min, Pmax 450 bar
  • Flow rate inflow: independent dividing capability due to current control divider principle
  • Robust and maintenance-free design
  • Integrated anti-shock/make-up valves
  • Low pressure drops thanks to energy-efficient design
Type Nominal size
 Flow rate, max.
l/min		 Operating pressure up to
bar		 Nominal flow rate
l/min		 Division ratio
MT14 14 300 450 150 1:1
  Type File extension Size
MT14_100-P-000275-en Catalog / Data sheet PDF 88.6 KB

Without anti-shock and anti-cavitation valve

With anti-cavitation valve

With anti-shock and anti-cavitation valve

  • Agricultural machinery
  • Construction machinery
  • Forestry equipment
  • Municipal equipment
