Full Catalog: Pressure Reducing Valves

Technical Data

Symbol	Type	Flow GPM	Size SAE	Data sheet	Model data CAD (STEP/IGS)

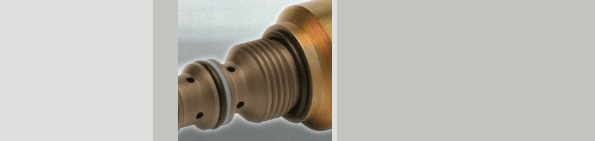

This unit is a pilot operated, sliding spool, screw in cartridge style, hydraulic pressure reducing valve, designated to act as a pressure-regulating device for secondary circuit.	PRPS-10	12	10	PRPS-10_520-P-050120-en	CAD (STEP/IGS)
This unit is a pilot operated, sliding spool, screw in cartridge style, hydraulic pressure reducing/relieving valve, designated to act as a pressure-regulating device for secondary circuit.	PRRS-08	6	08	PRRS-08_520-P-050210-en
	PRRS-10	12	10	PRRS-10_520-P-050220-en
	PRRS-12	24	12	PRRS-12_520-P-050230-en
